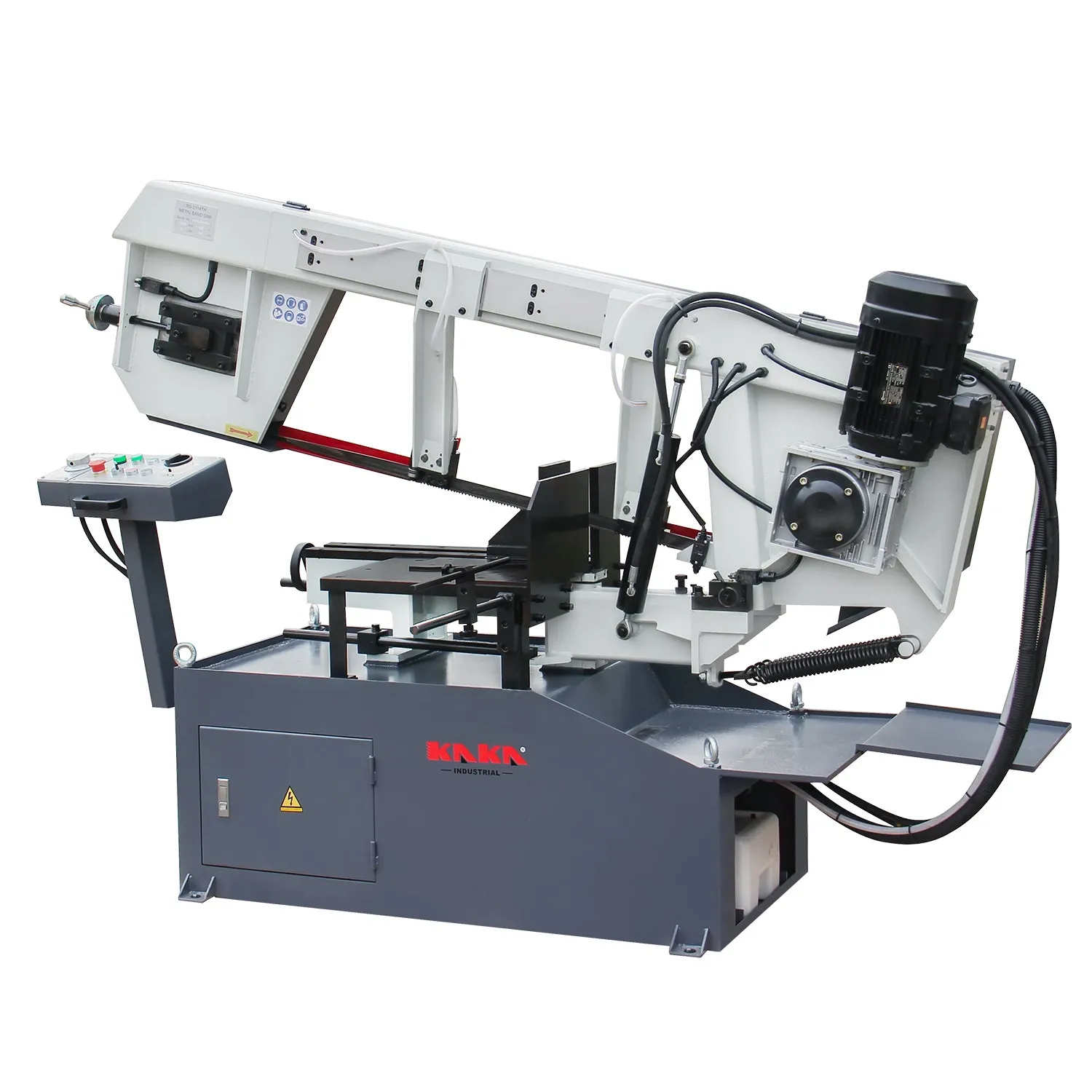

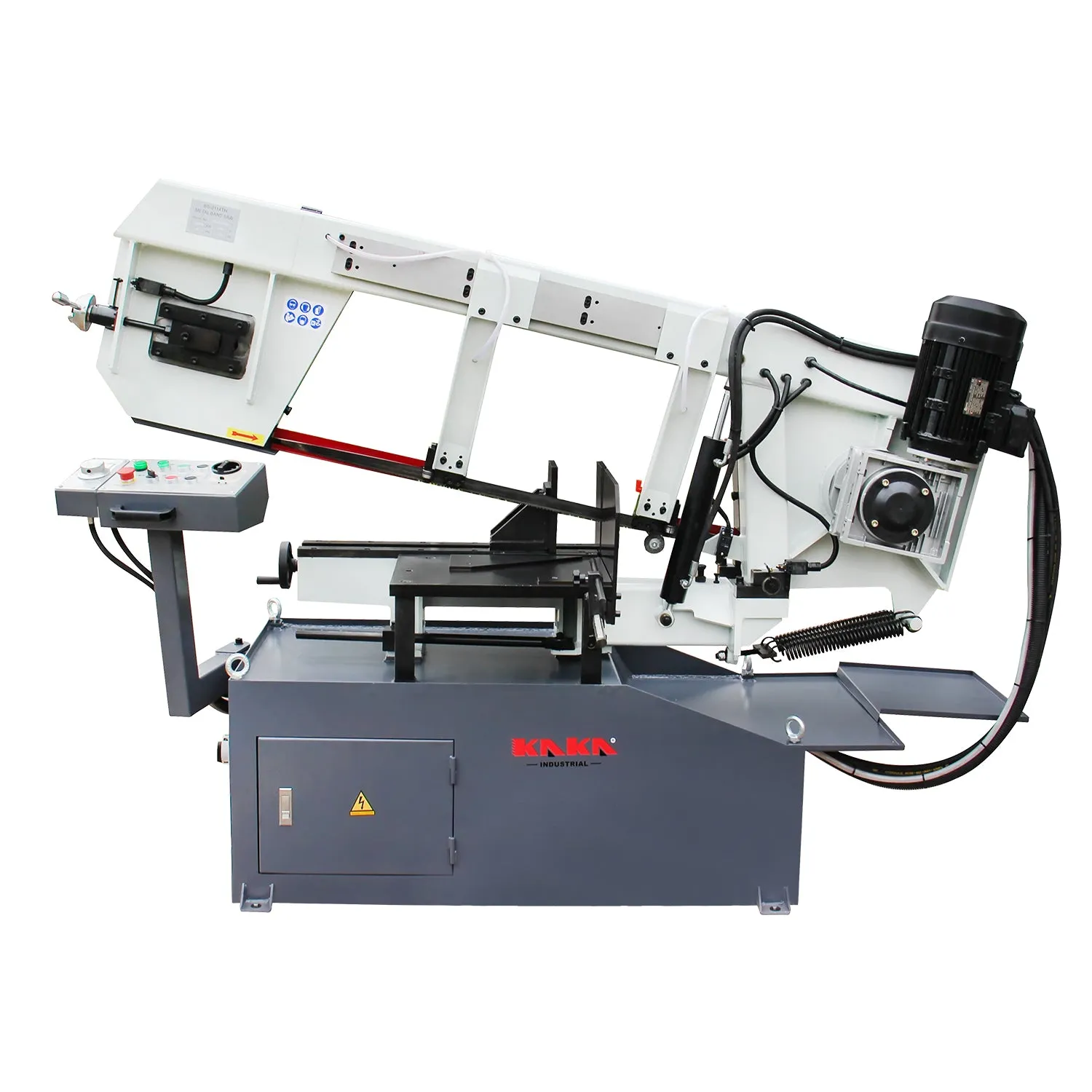

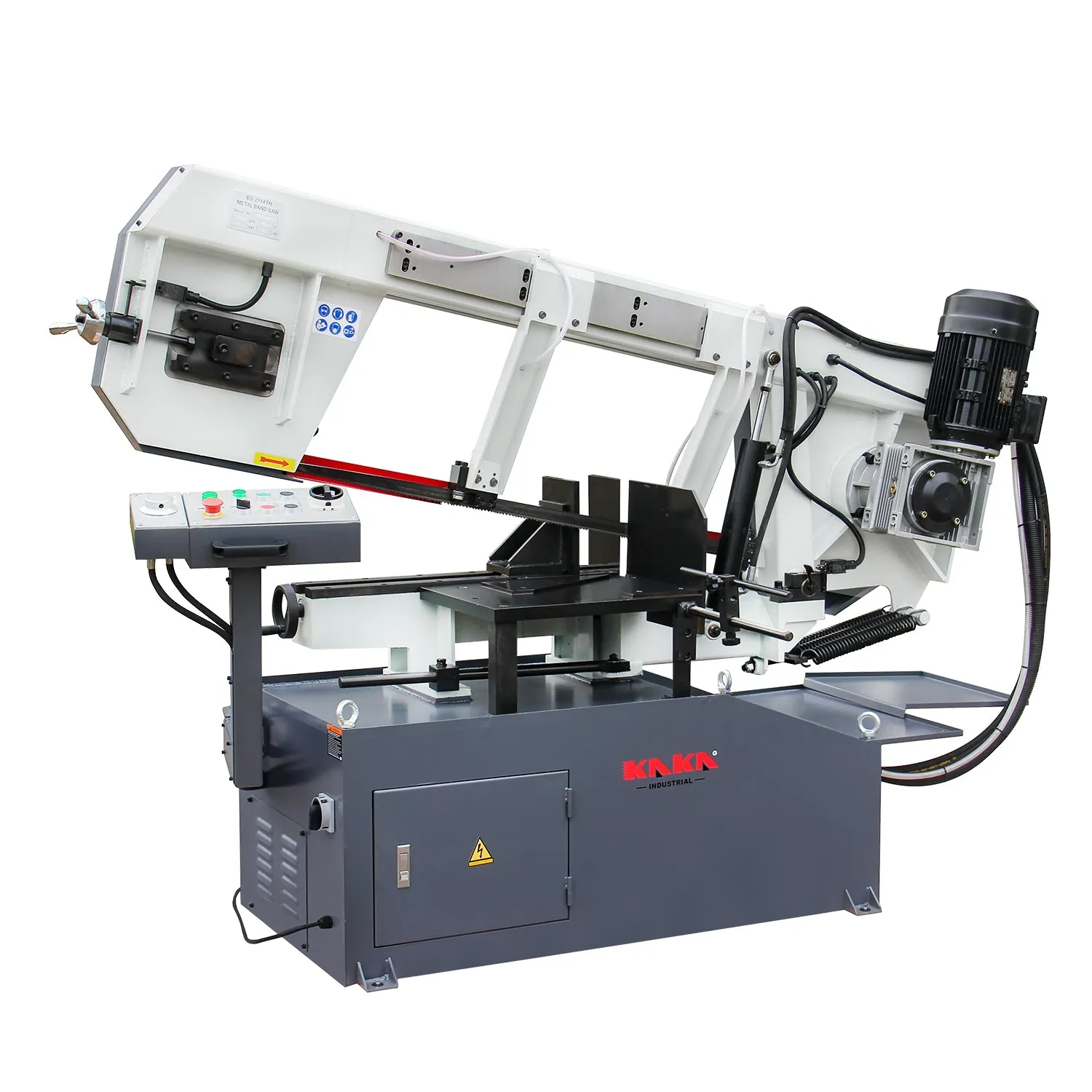

KANG Industrial BS-2114TH
Max. cut 400mm round at 90°
Features
Runs on 415V-3PH power, double-speed motor

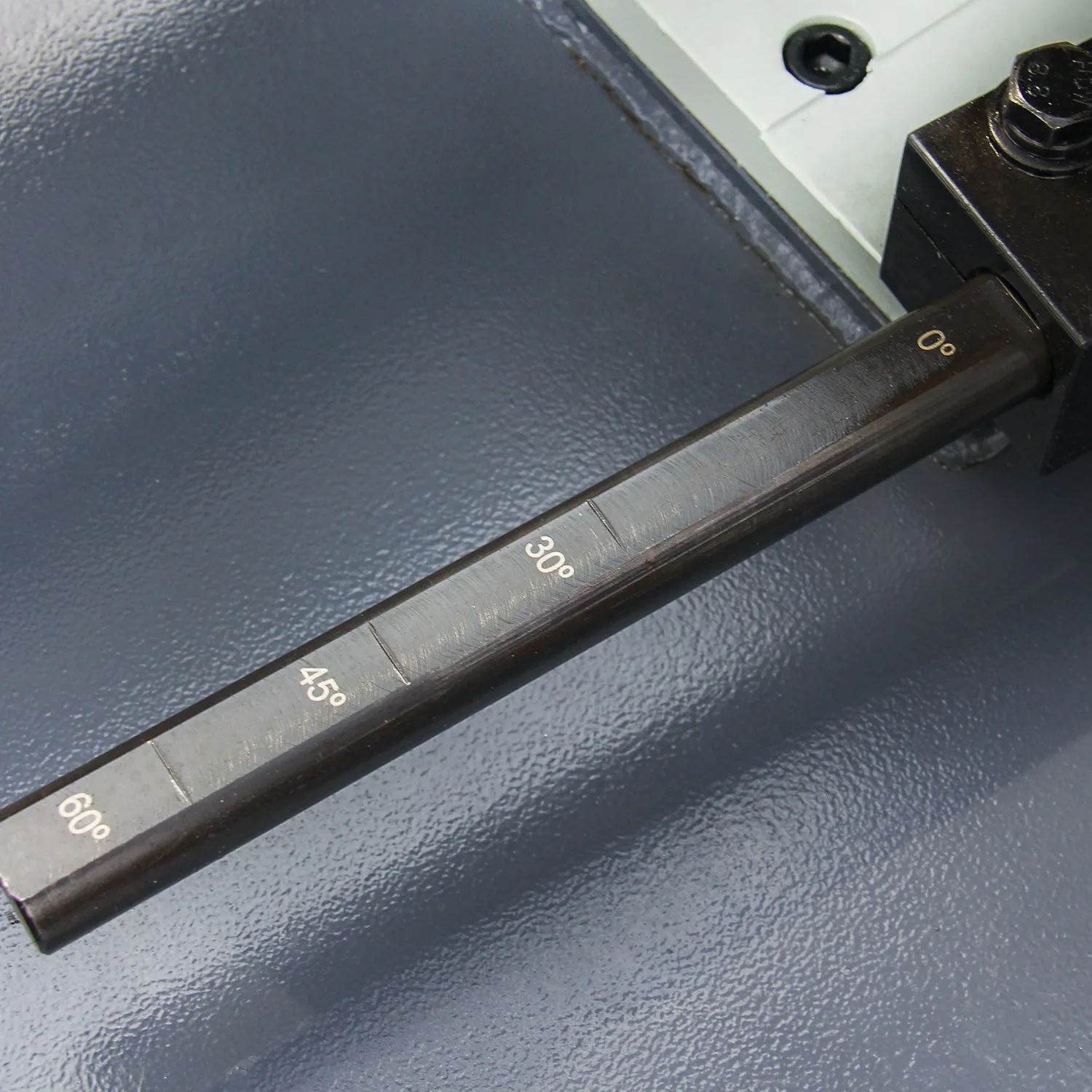

Swivel saw frame, miters up to 60°

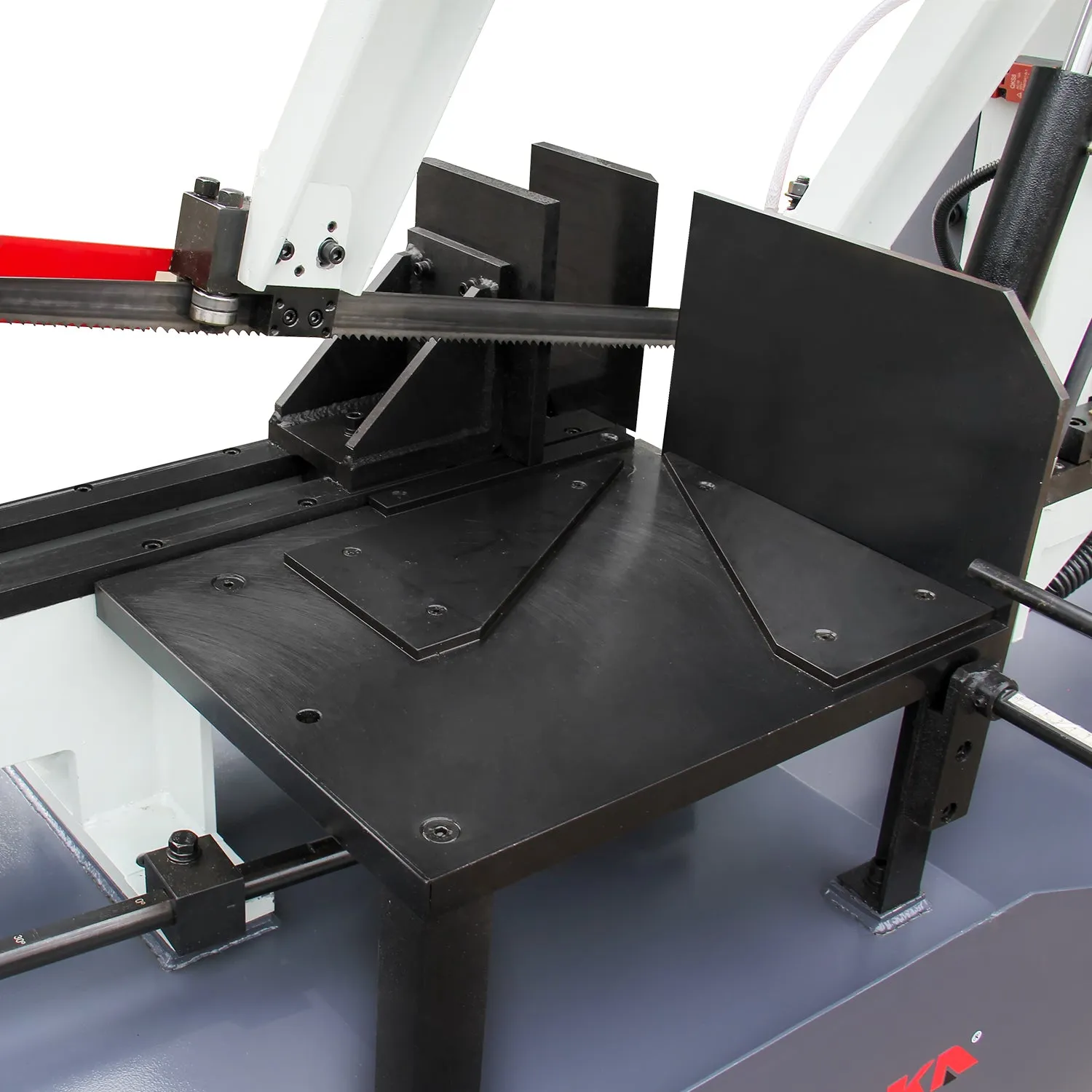

Sliding vice with quick clamp

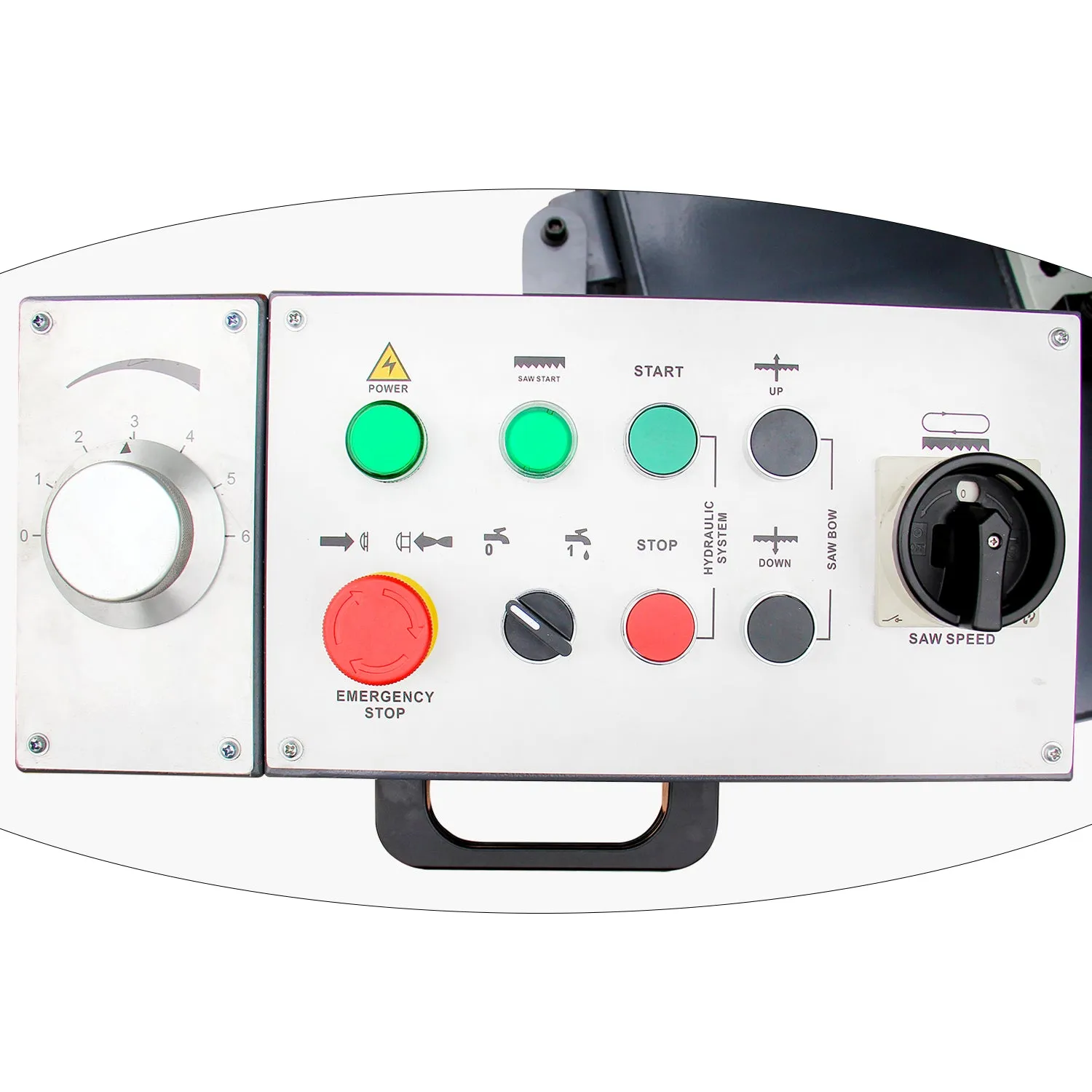

The control box is fixed on a swivel arm and is easy to operate.
2 cutting speed
Build-in coolant system extending the life of the blade

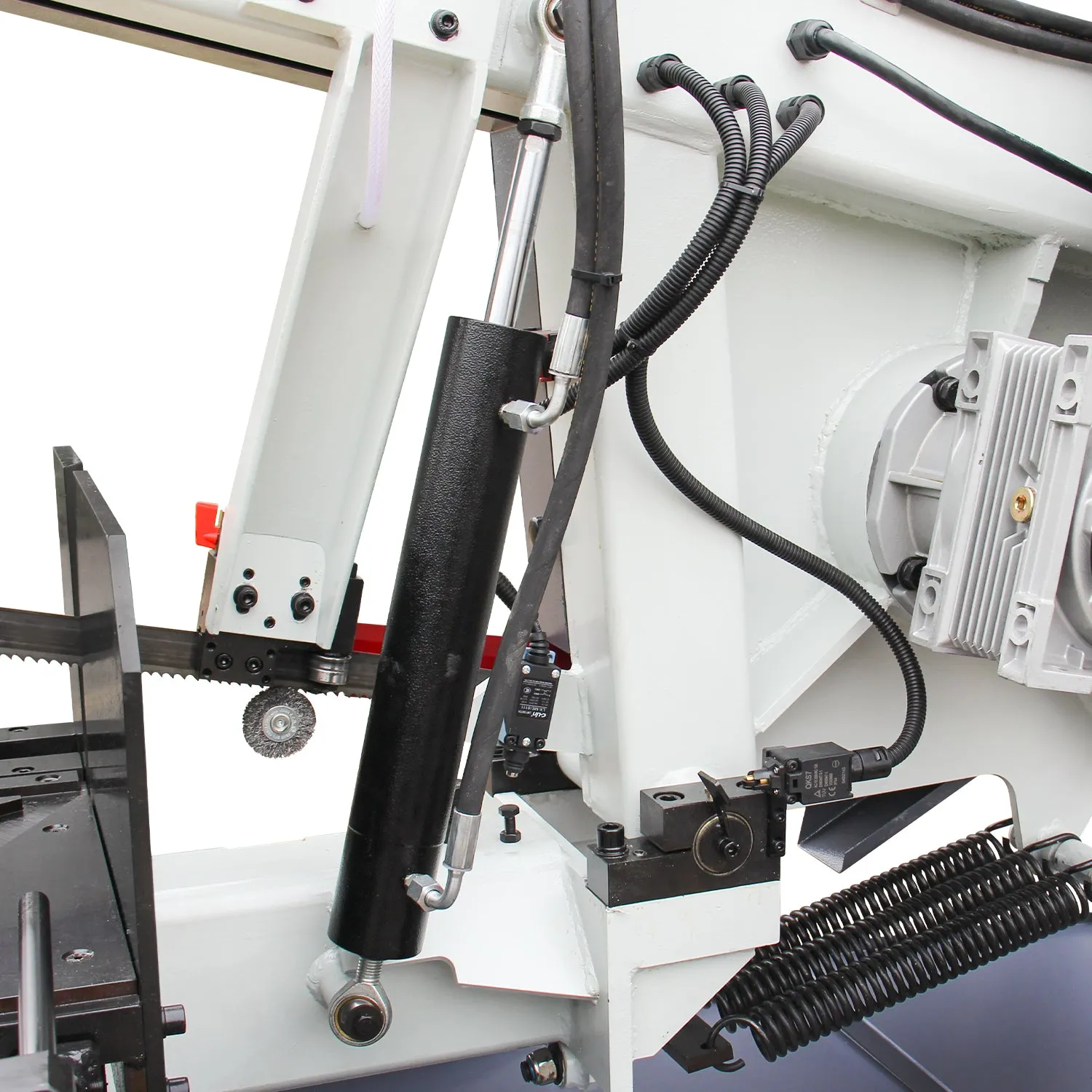

Hydraulic saw frame up and down
Specifications
| SKU | 188066 |
| Model | BS-2114TH |
| Cut circular @90° | ø 400 mm |
| Cut rectangular @90° | 500x360 mm |
| Cut circular @60° | ø150 mm |
| Cut rectangular @60° | 250x200 mm |
| Cut circular @45° | ø 340 mm |
| Cut rectangular @45° | 400x340 mm |
| Blade speed | 48/70 MPM |
| Balde size | 4405x34x1.1 mm |
| Motor power | 2.2/2.8 kW |
| Drive | Gear |
| Packing size | 230x83x158 cm |
| N.W./G.W. | 630/760 kg |
