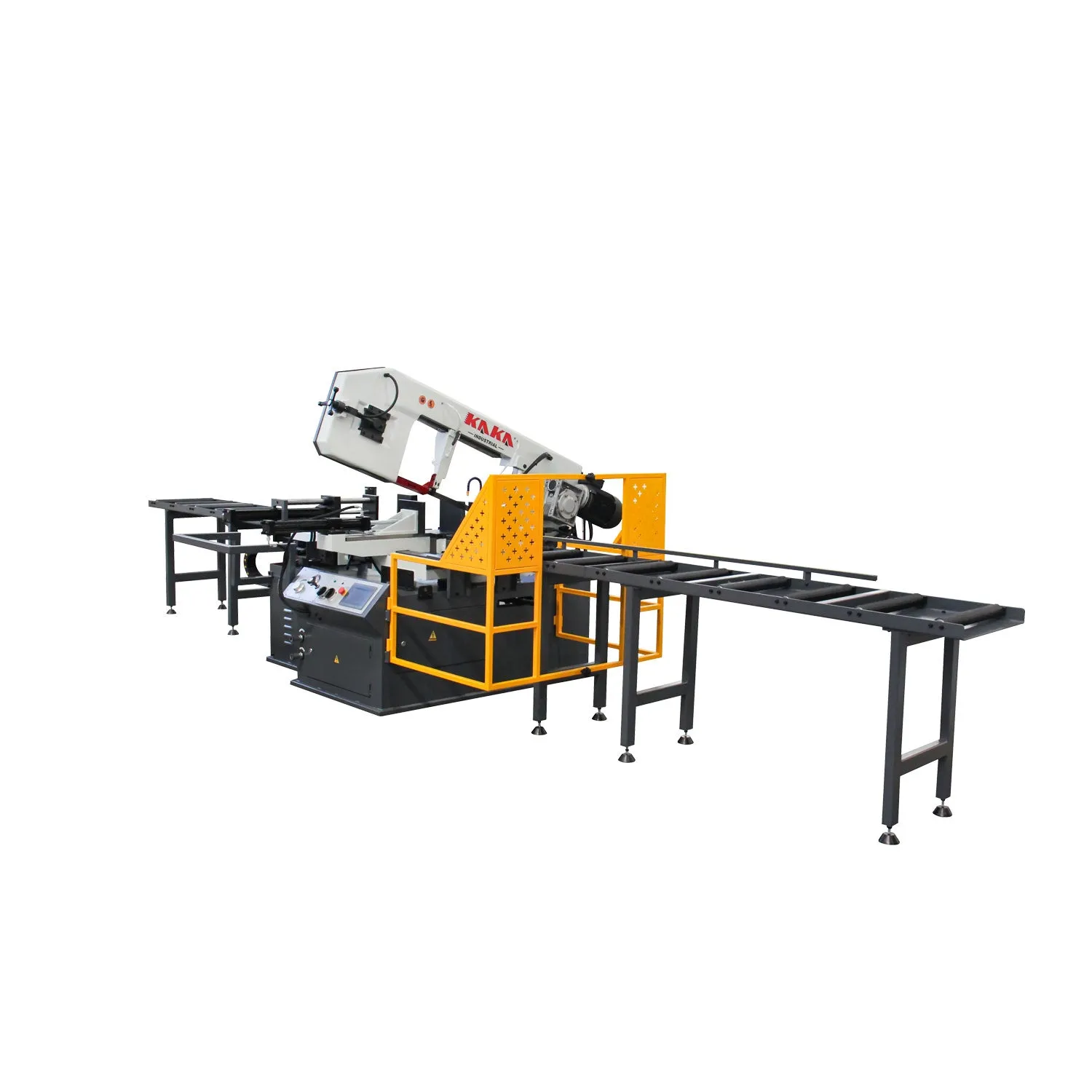

Kang Industrial Metal Cutting Band Saw
Semi-CNC Metal Band Saw, PLC control
Features

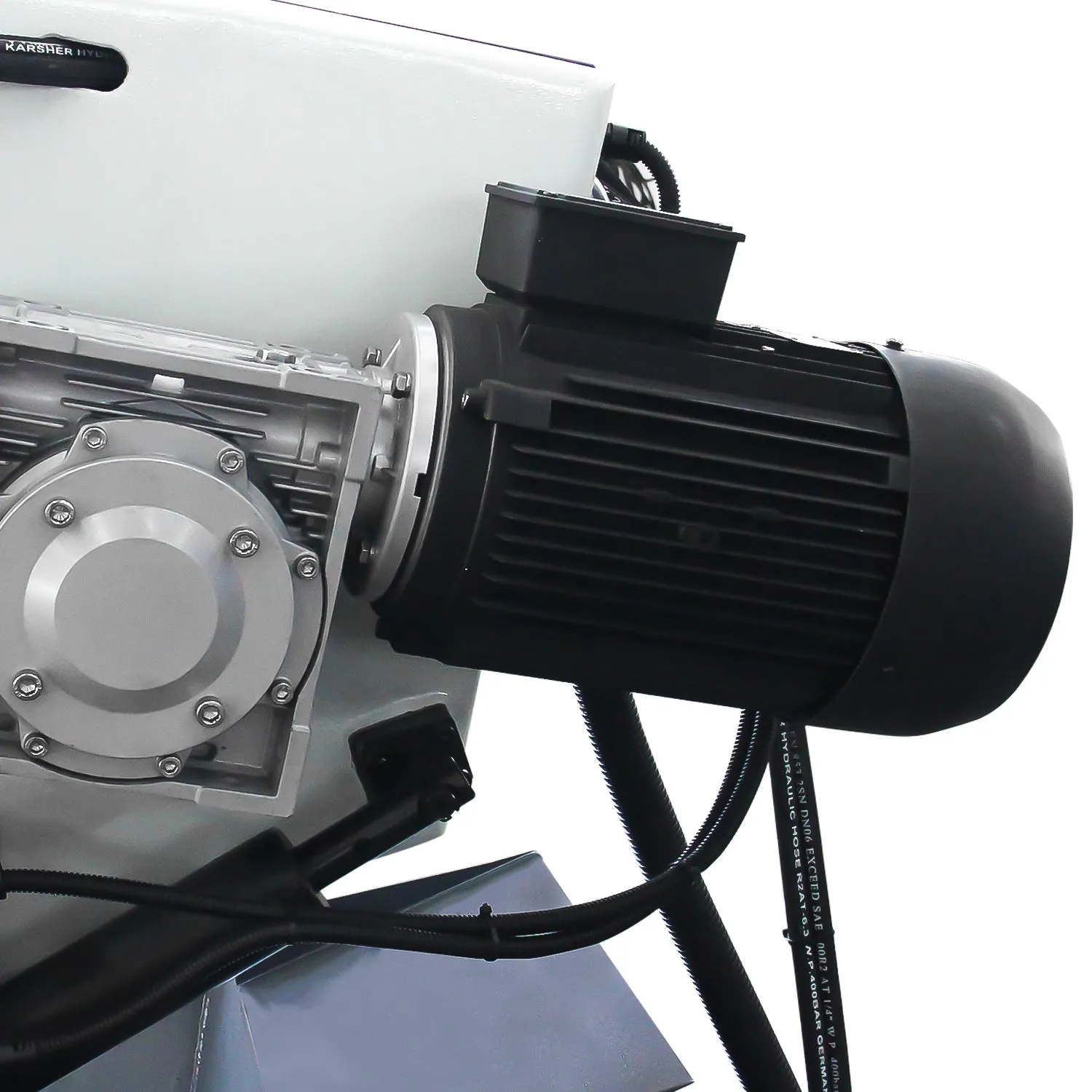

Runs on 415V-3PH power, 1.5/2.2kW double speed motor
Max. cut 330mm at 90 degrees
Gear drive, double cutting speed (optional, variable speed at extra cost)
Swivel saw frame, max. angle 60 degrees

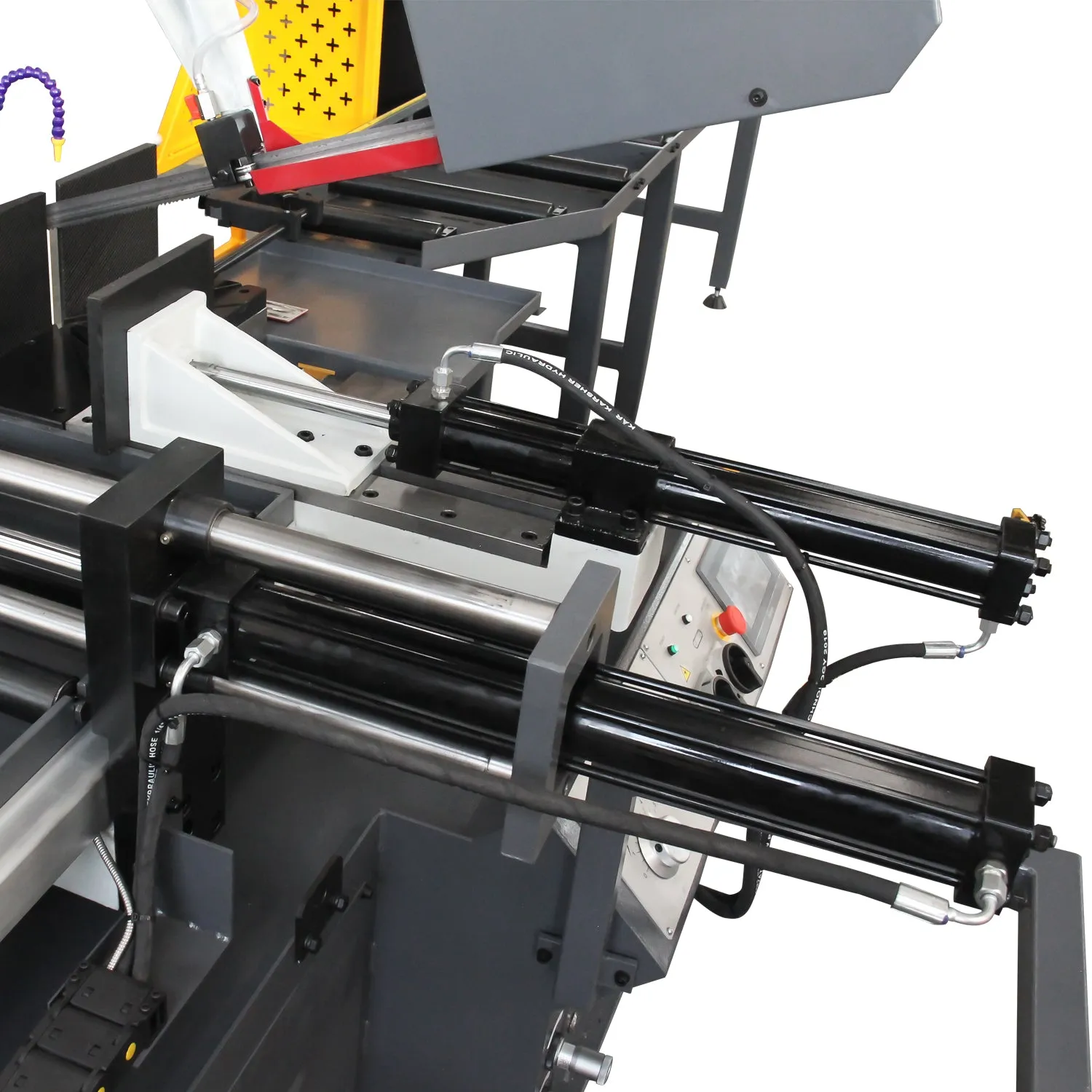

Automatic feeding and clamping, max. feed 500mm each feed

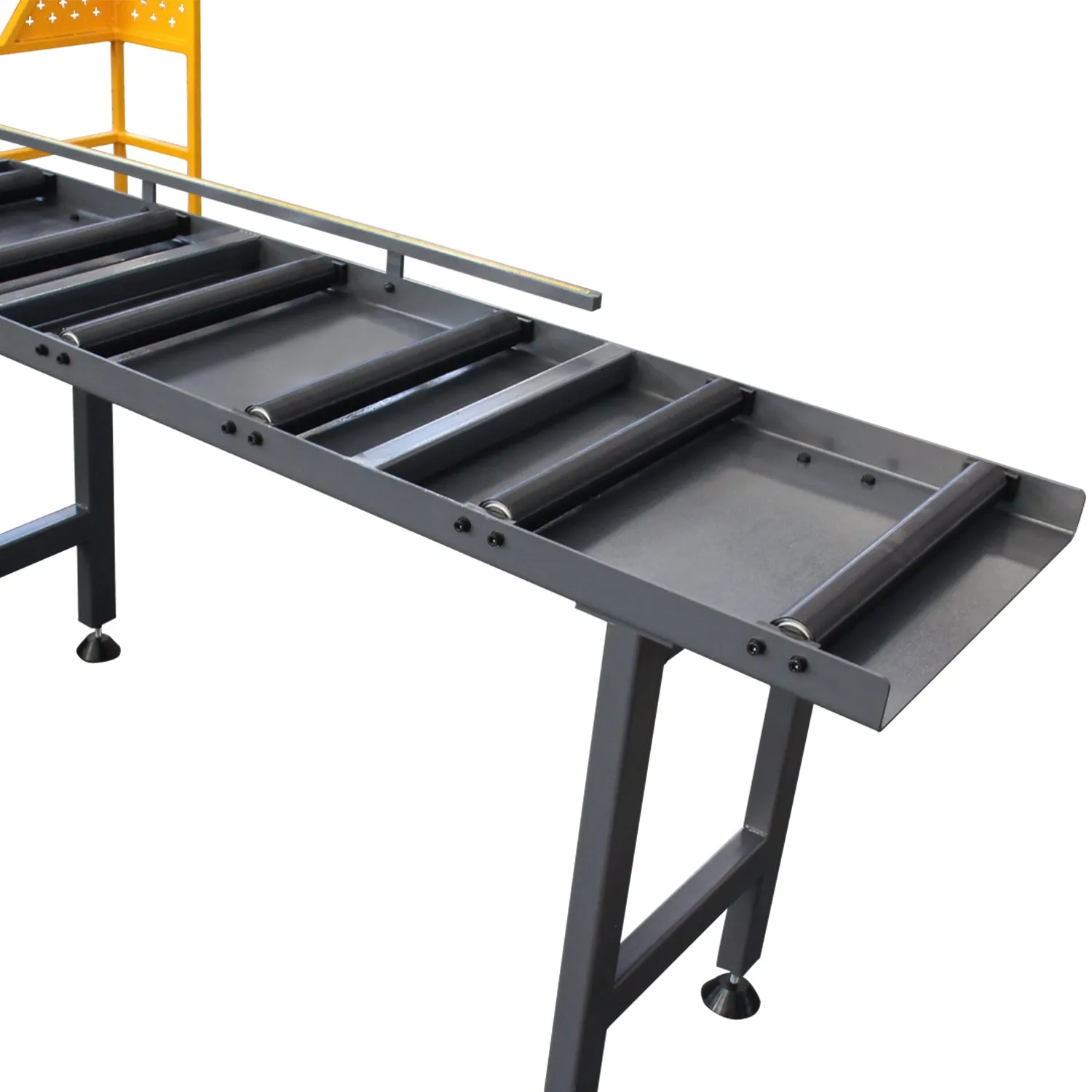

Standard with material stand, total 6-meter length width up to 460mm
Stop rod available on the material stand

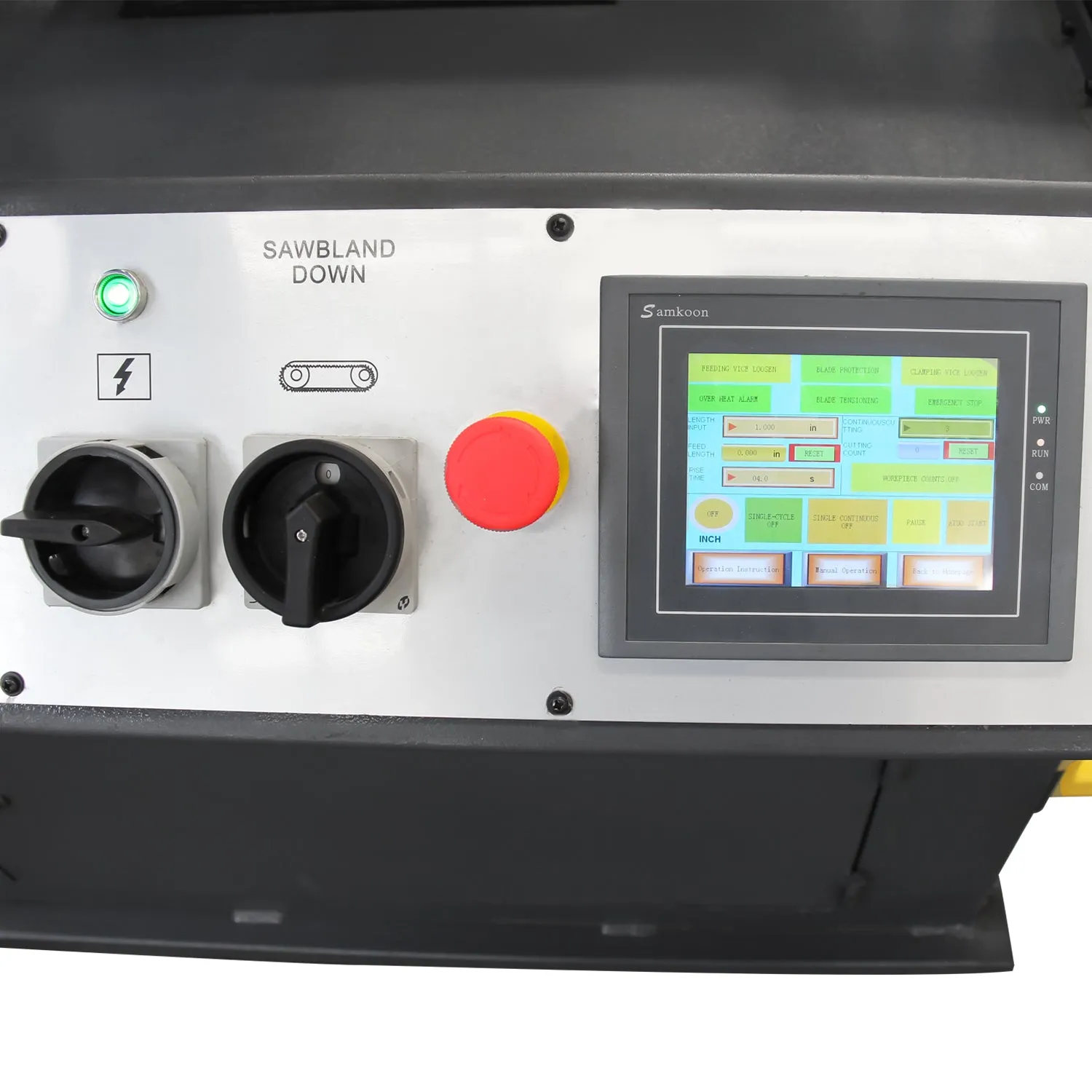

PLC control with an HMI, easy operation
Specifications
| SKU | 188127 |
| Model | BS-1810G |
| Cut circular @90° | 330 mm |
| Cut rectangular @90° | 460x250 mm |
| Cut circular @60° (right) | 205 mm |
| Cut rectangular @60° (right) | 205x250 mm |
| Cut circular @45° (right) | 305 mm |
| Cut rectangular @45° (right) | 305x250 mm |
| Blade speed | 40/80 MPM |
| Blade size | 27x0.9x3960 mm |
| Motor | 1.5/2.2 kW |
| Drive | Gear |
| Packing size | 265x230x163 cm |
| N.W./G.W. | 1520/1655 kg |
